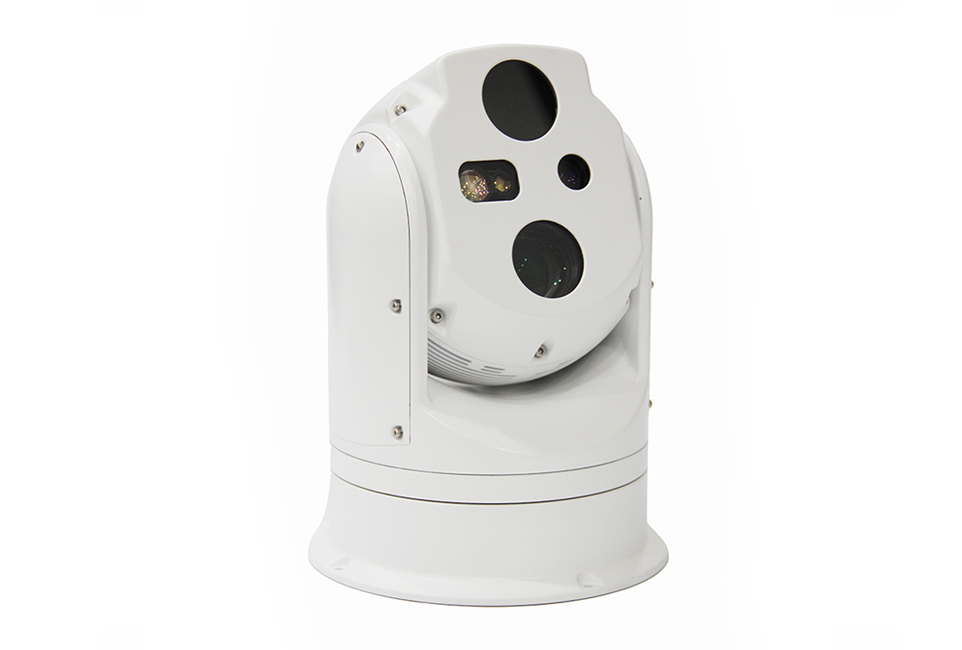

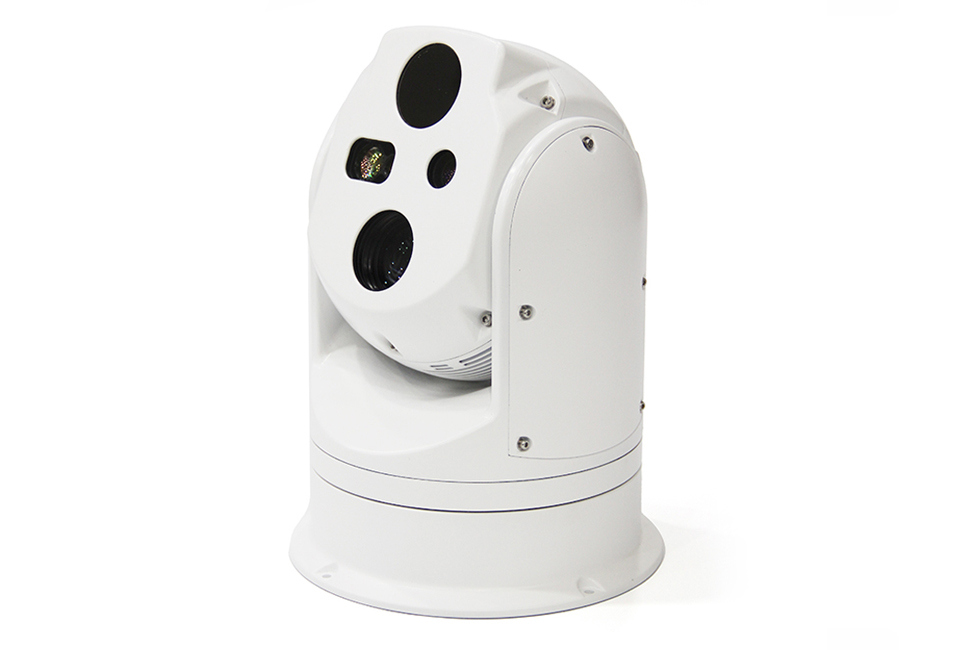

| Functions | Supports infrared imaging, visible light imaging, laser ranging, target recognition, target velocity measurement, target positioning, target attitude information feedback (pitch angle, yaw angle, distance), device self-test, fault indication, status query, parameter configuration, and online software upgrades. |
| Infrared Thermal Imager |
|

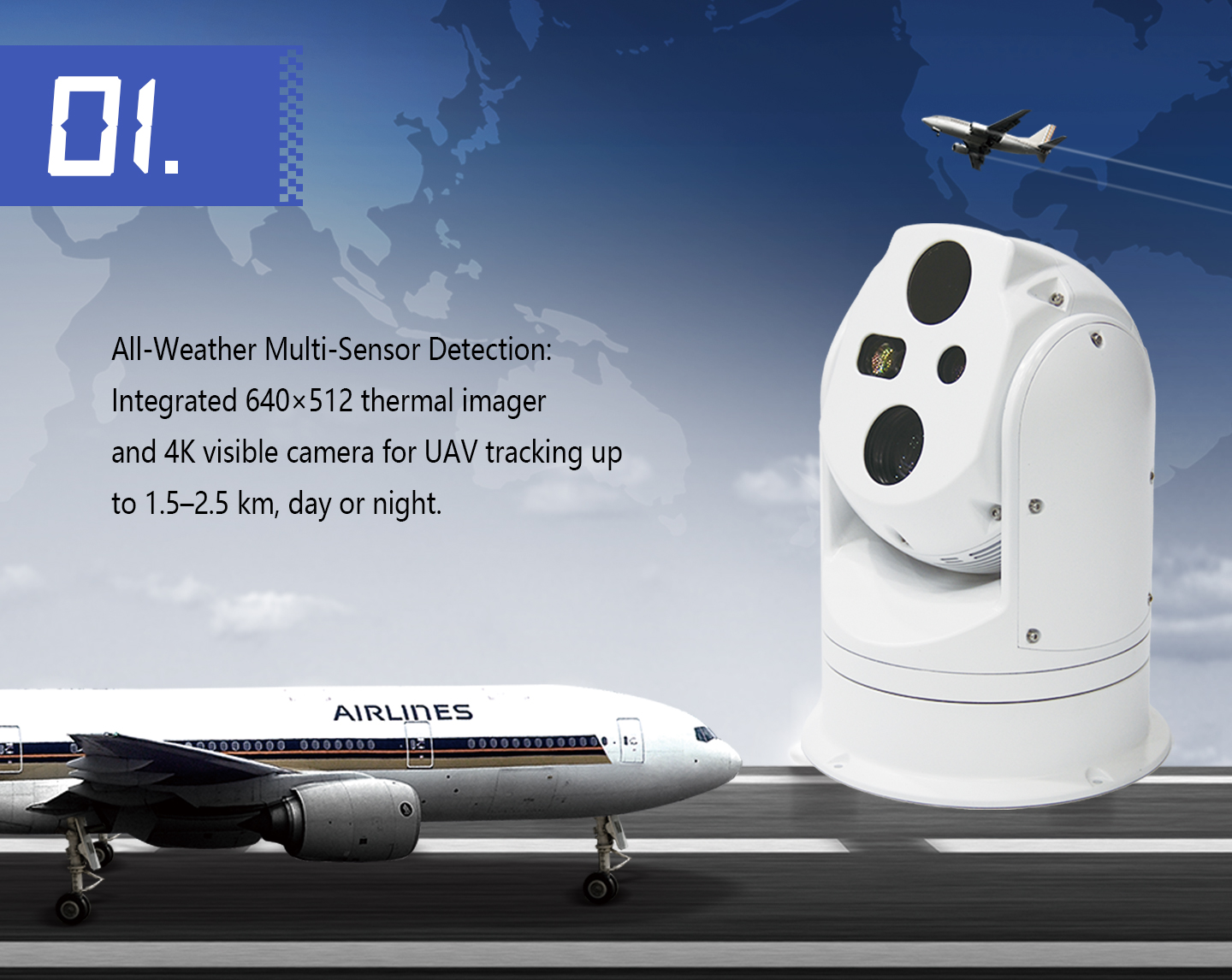

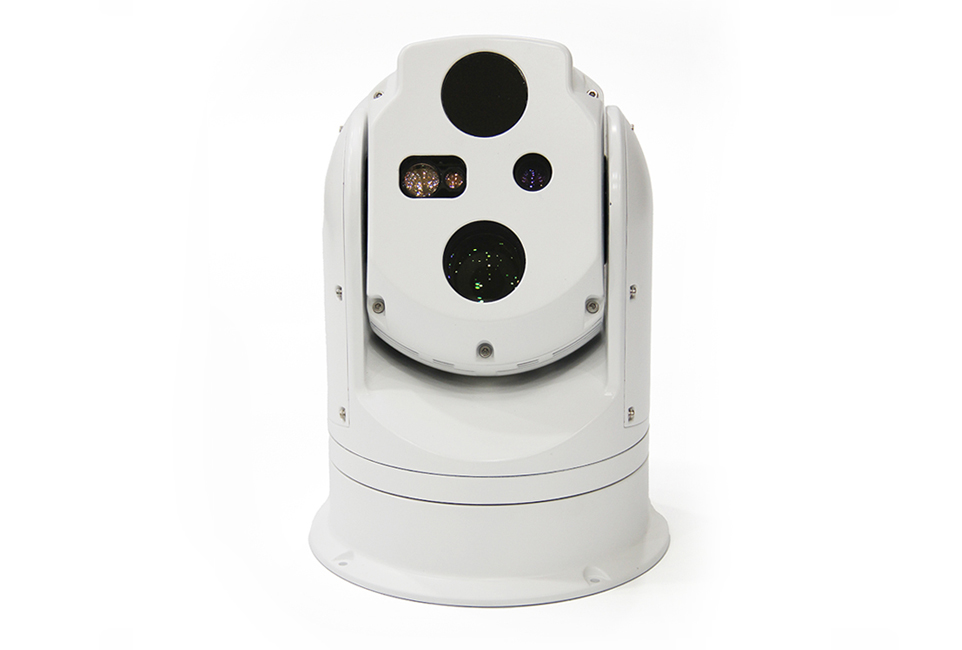

| Detector | 640×512 uncooled focal plane array |
| Focal length | 35mm F1.2 |
| Tracking distance for UAVs no smaller than 4m | no less than 1500m |
| TV Camera |
|
| Detector | 4K high-definition CMOS color camera |
| Focal length | 25~100mm; (dual field of view simulated continuous zoom) |
| Tracking distance for UAVs no smaller than 4m | no less than 2500m |

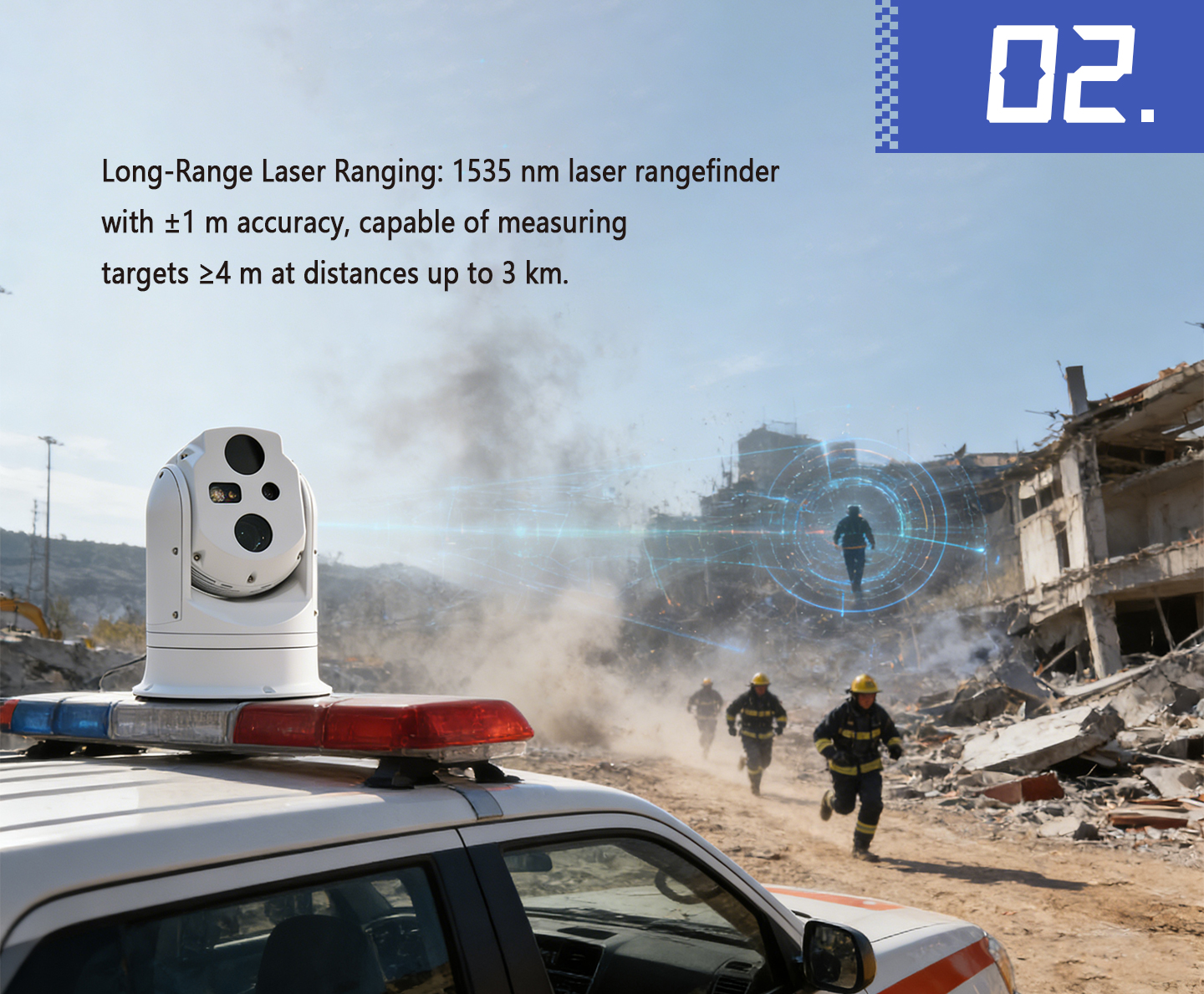

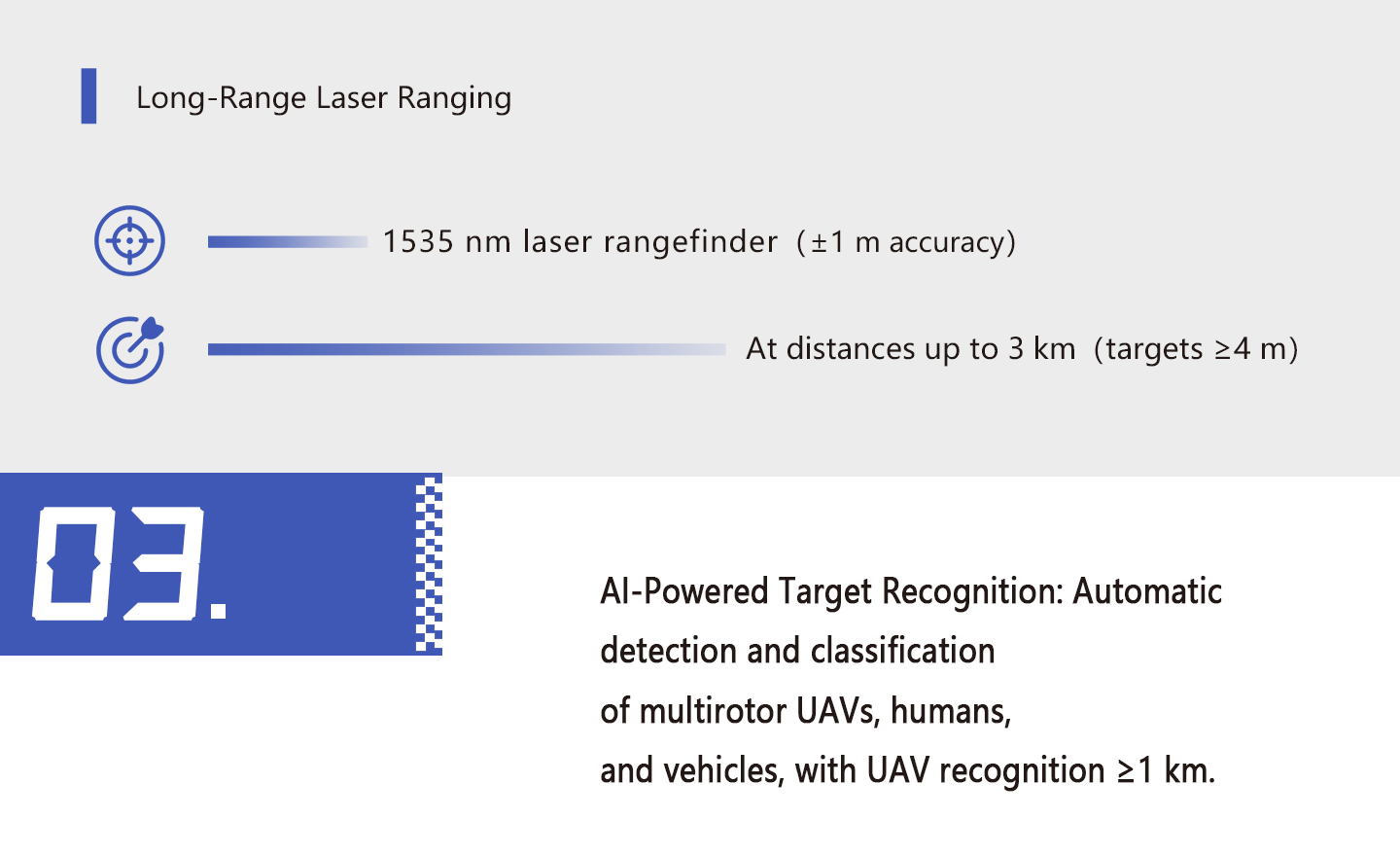

| Laser Rangefinder |
|
| Operating wavelength | 1535nm±5nm |
| Racing capability | ≥3km (for 4.0m UAV targets, visibility greater than...) 5km) |
| Range accuracy | ±1m |

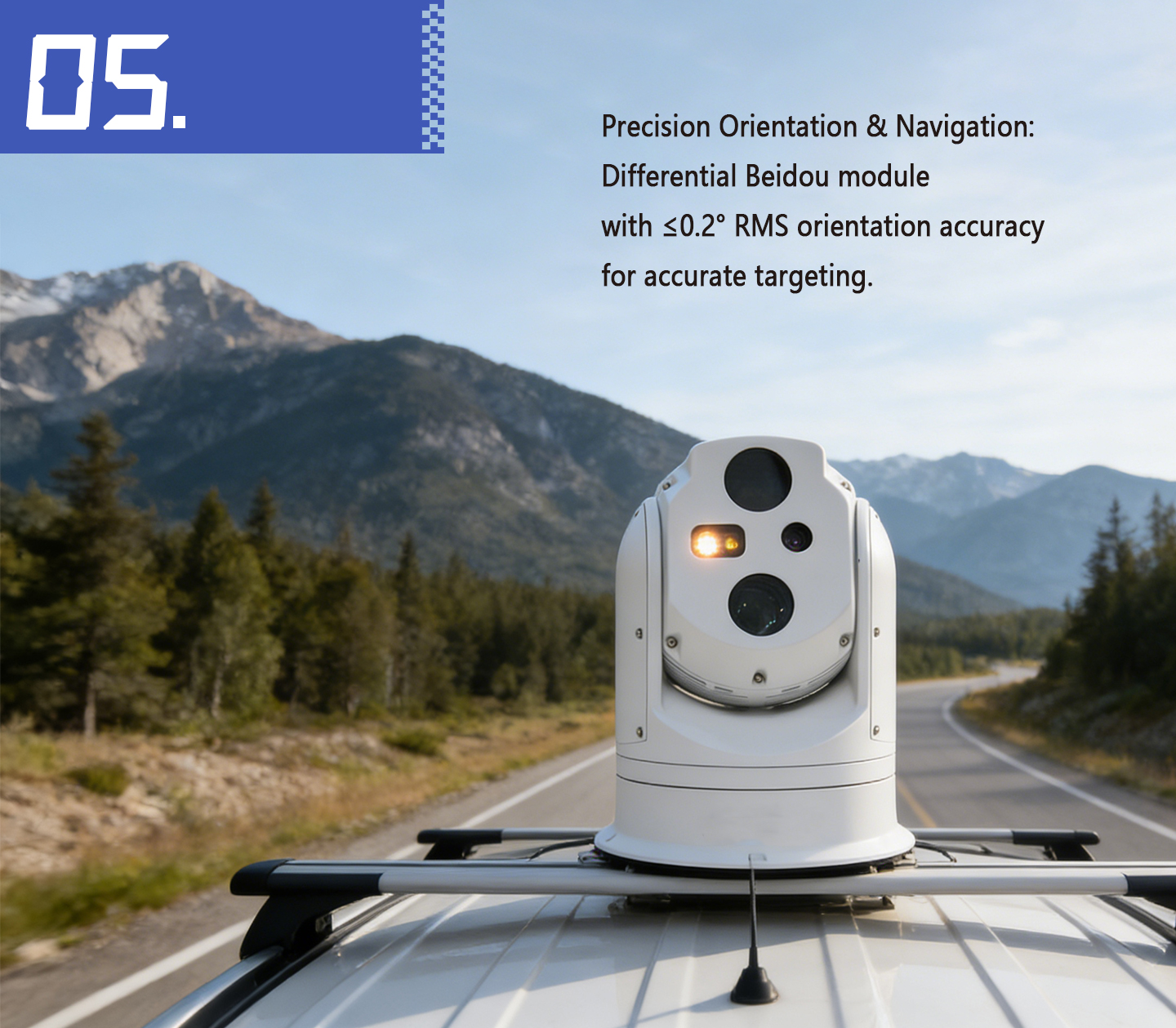

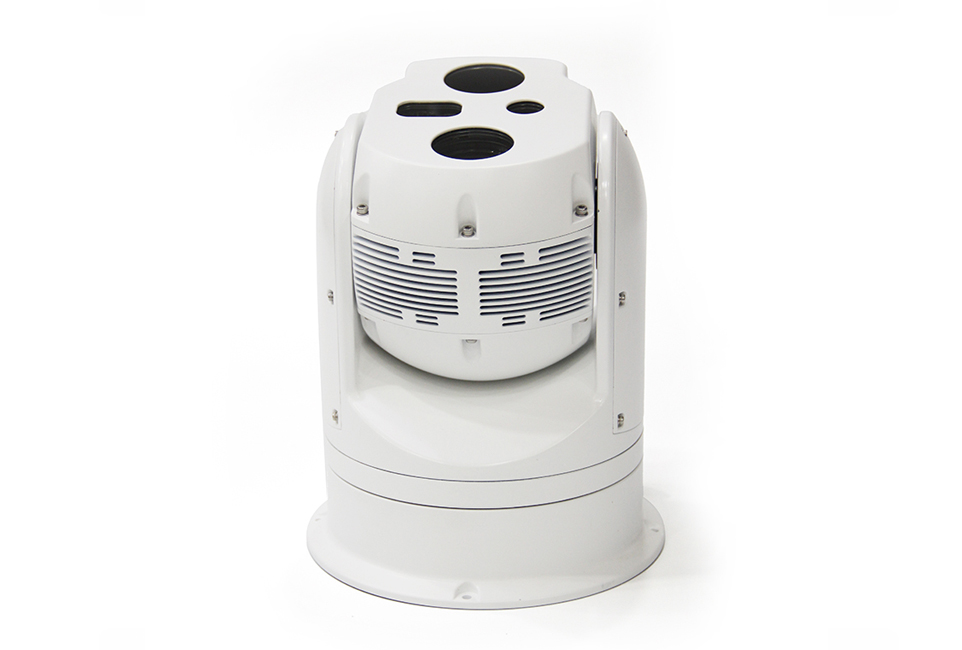

| Differential BeiDou positioning and orientation module | Orientation accuracy ≤0.2°RMS |
| Working range | Rotation range n×360 degrees, Pitch range -5°~+75° |

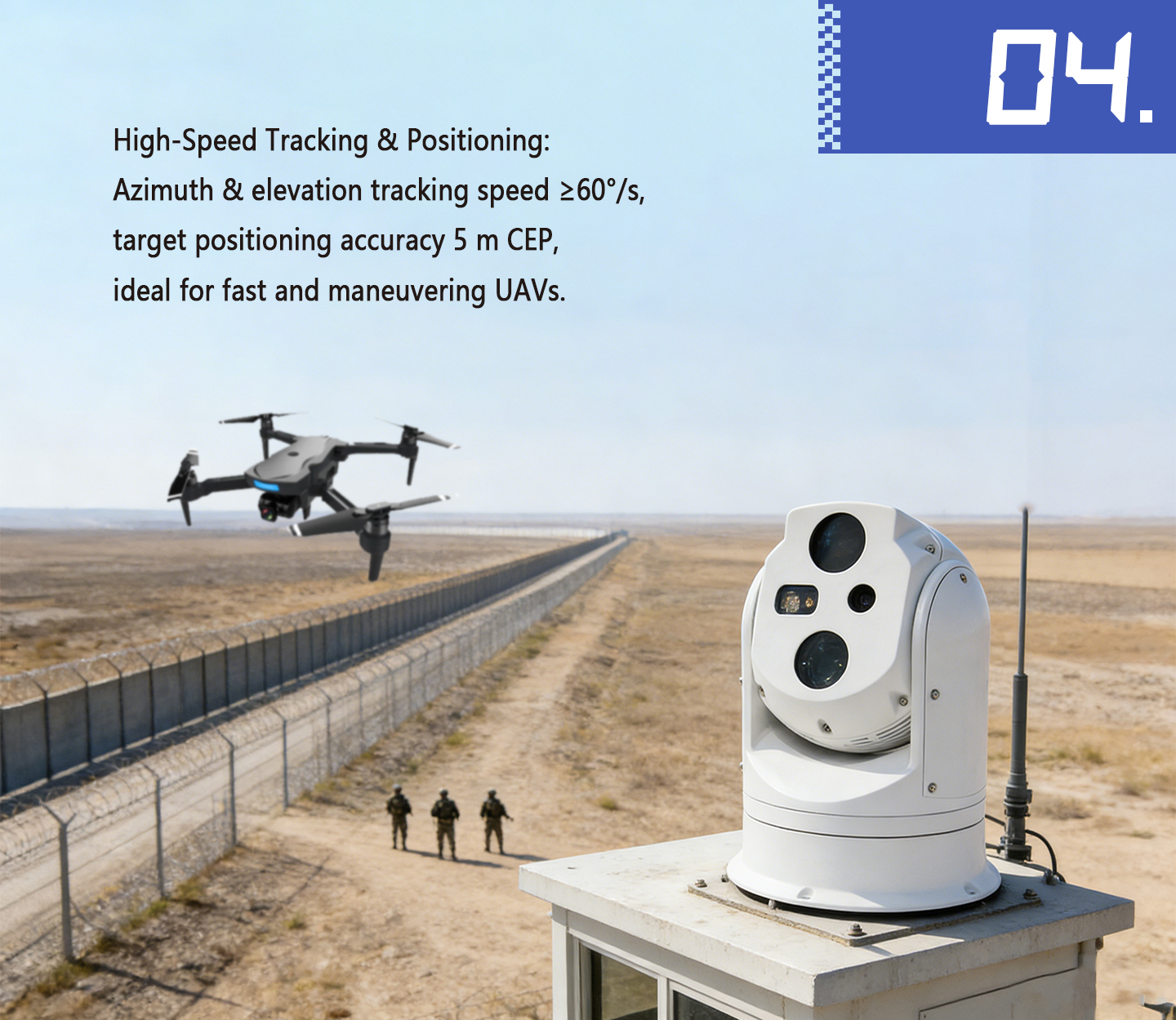

| Tracking speed | Maximum azimuth tracking speed ≥60°/s, Pitch tracking speed ≥60°/s |
| Vehicle speed measurement and target positioning | Speed measurement accuracy ≤2% or 2km/s (whichever is greater, provisional, or RMS), target positioning accuracy 5m (CEP) |
| Image processing module |
|
| Tracking capability | Minimum tracked target size ≤6×6 pixels, target contrast ≤5% |
| Tracking error ≤2 pixels, maximum tracking frequency ≥50Hz |
|

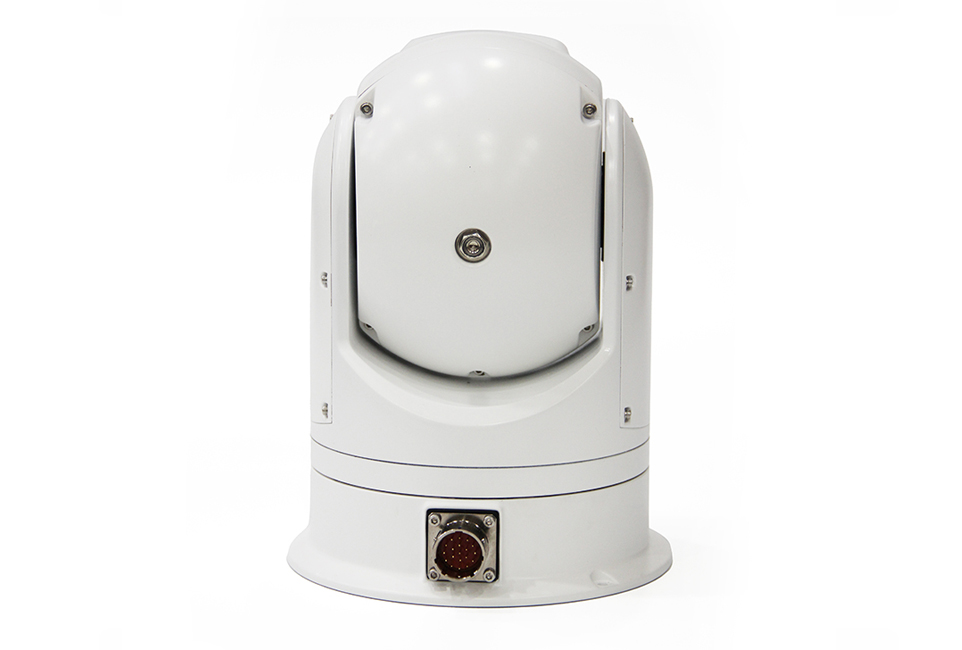

| AI recognition capability | Recognizes target types including multi-rotor drones, people, and vehicles; Recognizes distances of 1.5m×0.4m multi-rotor drones. ≥1km (using multi-rotor aircraft as a typical target; specific targets can be specified upon request) |
| Interfaces |
|

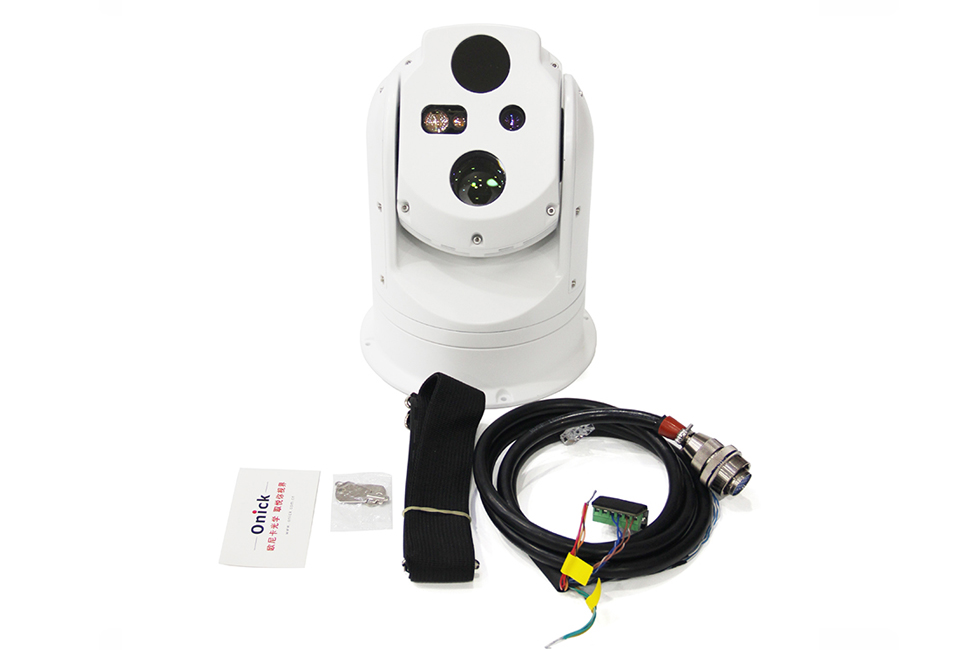

| Video Interface | Network video interface, H.264/H.265 encoding, RTSP streaming |
| Communication Interface | RS422 asynchronous serial port |
| Power Interface | Operating voltage DC24V±6V, average power consumption ≤25W, peak power consumption (when heating) ≤60W |
| Physical Parameters |
|
| Dimensions | 182mm×250mm |
| Weight | Approx. 5kg |

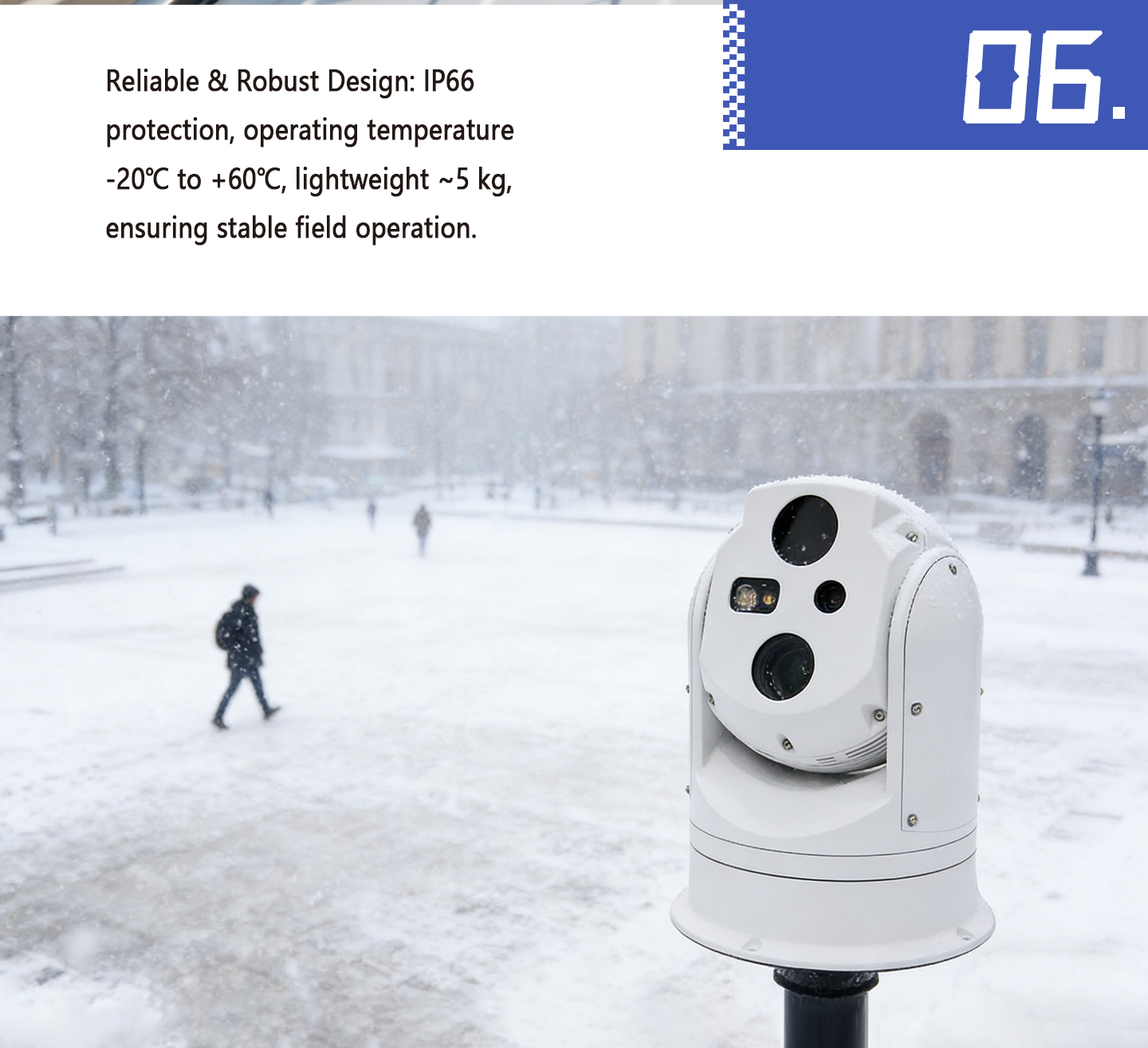

| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | 40℃~+60℃ |
| Vibration and Shock | Meets the requirements for road, rail, air, and sea transportation in packaged condition |
| Protection Rating | IP66 |
| Appearance | White |
